What Are PTFE Rubber Flange Gaskets?

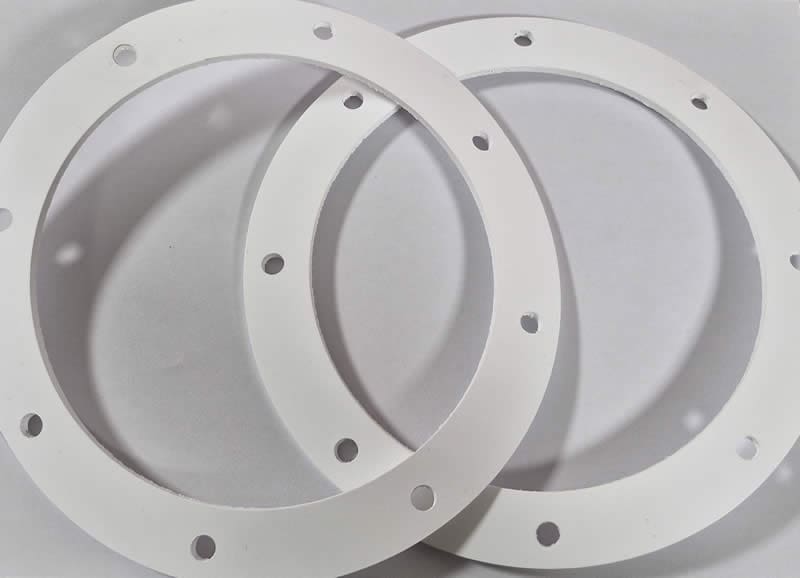

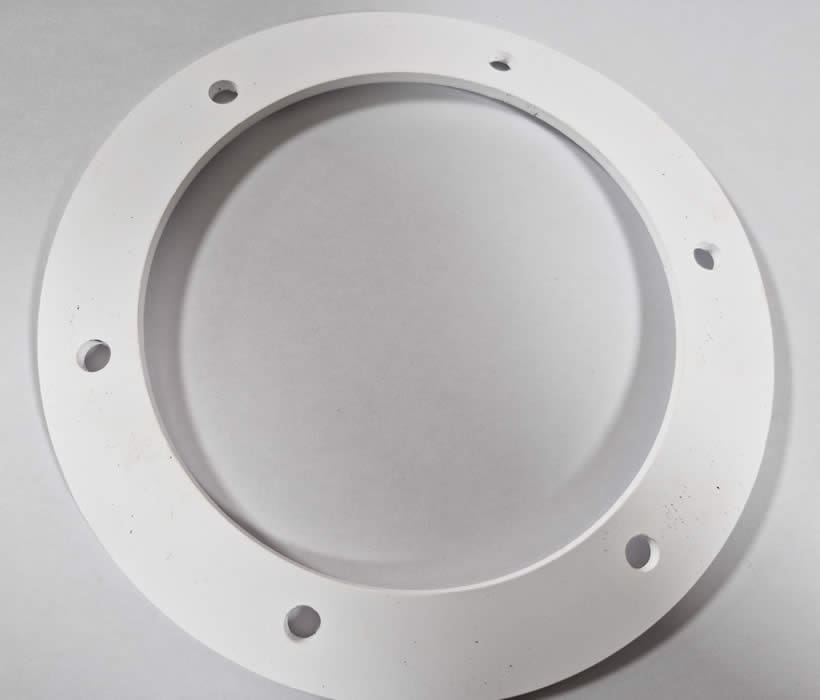

At Stephens Gaskets we provide PTFE rubber flange gaskets as high-performance sealing solutions designed for use between flanged joints in pipe systems.

By combining PTFE (Polytetrafluoroethylene) with rubber such as EPDM, Nitrile, or Silicone, these gaskets deliver outstanding chemical resistance, thermal stability, and sealing flexibility.

Ideal for applications where harsh chemicals, high temperatures, or hygiene compliance are essential, they are widely used in processing plants, pipelines, and industrial systems.

Key Features of PTFE Rubber Flange Gaskets

  • Chemical Resistance: PTFE resists acids, solvents, and aggressive chemicals.
  • Temperature Range: Can withstand temperatures from -200°C to +260°C depending on rubber type.
  • Non-Stick Surface: Prevents product build-up and simplifies disassembly.
  • Sealing Flexibility: Rubber ensures conformity to uneven or worn flange faces.
  • Durability: Resists wear, creep, and chemical degradation over long service periods.
  • Food-Grade & Non-Toxic: Suitable for sterile and hygienic environments (FDA, WRAS compliant options available).

Applications Across Industries

1. Chemical Processing
Handles corrosive media without degradation. Used in pipe systems transporting acids, alkalis, or solvents.
2. Pharmaceutical Manufacturing
PTFE ensures contamination-free sealing in cleanroom environments and sterile process lines.
3. Food & Beverage
Non-stick, hygienic, and FDA-compliant – ideal for food-grade pipelines and process vessels.
4. Oil & Gas
Performs under high pressure and temperature in petrochemical systems and refining plants.
5. Water Treatment
Compatible with chlorine and other treatment chemicals. Used in filtration and distribution systems.
6. Industrial Utilities
Seals steam, compressed air, and chemical media in diverse processing and utility systems.

Material Options for Specific Manufacturing Requirements

Material Best For Temp Range (Approx.)
EPDM Water, steam, acids, alkalis -45°C to +130°C
Nitrile (Buna-N) Oil, fuels, industrial fluids -35°C to +120°C
Silicone Food, pharma, extreme temperatures -60°C to +230°C
Viton® (FKM) Solvents, high temp, chemical plant use -20°C to +250°C
PTFE-Coated High-purity, non-stick sealing -200°C to +260°C
PTFE Rubber Flange Gaskets for Chemical & Industrial Use

Key Benefits of PTFE Rubber Flange Gaskets

1. Chemical Resistance

PTFE protects against nearly all industrial chemicals, acids, and solvents – ideal for aggressive applications.

2. Thermal Stability

Performs in both cryogenic and high-temperature environments. Maintains seal integrity under fluctuating conditions.

3. Flexible & Resilient

Rubber core absorbs vibration, accommodates thermal expansion, and ensures sealing under pressure.

4. Clean, Non-Contaminating

PTFE’s smooth surface prevents contamination and supports hygienic operations in food and pharmaceutical lines.

5. Easy Installation

Flexible and forgiving. Reduces assembly time and simplifies maintenance or replacement.

6. Long Service Life

Minimises downtime and lowers total cost of ownership in harsh or critical systems.

Solving Common Concerns

“Aren’t these gaskets expensive?”

PTFE rubber gaskets are more costly than basic rubber types, but they significantly reduce failures and downtime in corrosive or high-performance environments – delivering value over time.

“Will they creep under pressure?”

We use reinforced designs and quality PTFE bonding to minimise cold flow and extend life in static joints.

“Are they difficult to install?”

Our gaskets are precision-cut and easy to handle. We provide torque guidance to prevent over-compression or PTFE layer damage.

“Do they suit my chemicals?”

We supply chemical compatibility charts and provide expert advice to ensure the gasket matches your media.

“Are they available for urgent jobs?”

Yes – we offer fast turnaround and UK-wide shipping. Custom sizes can often be delivered within days.

Why Choose Stephens Gaskets?

As an established PTFE rubber flange gaskets manufacturer, we combine decades of expertise with cutting-edge production to supply reliable sealing solutions.

  • UK-based manufacturing with rapid lead times.
  • Custom sizes, shapes, and compound options.
  • Expert technical support for complex applications.
  • FDA, WRAS, and industrial-grade compliance.
  • Small-batch or volume production available.

We’re trusted by process engineers, OEMs, and maintenance teams across sectors including chemical processing, water treatment, and food production.

Contact Us

Looking for a dependable PTFE rubber flange gaskets supplier?

We provide technical advice, fast quotations, and precision-manufactured gaskets for critical industrial applications.

Let us know your spec, media, or flange type – and we’ll provide a solution that performs, seals, and lasts.
